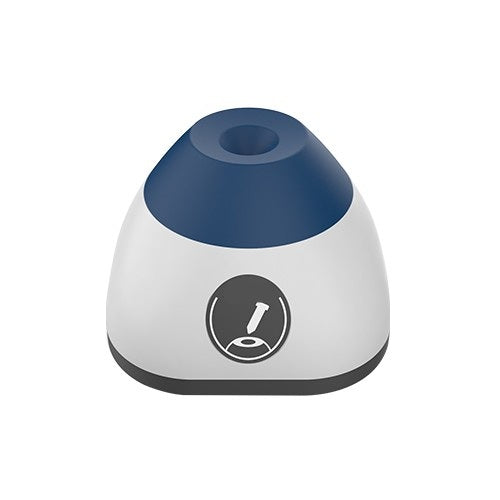

Features
Smart and Portable / Tap to launch / Brushless motor / Stepless speed regulation
Suitable for centrifugal tube, Eppendorf tube and so on.
Control mode
Fixed speed
Motor type
Brushless motor
Orbital diameter (MM)
4.5 (circular oscillation)
Max handling volume (mL)
50
Speed range (RPM)
3000
Output power (W)
12
Turn
Anticlockwise
Voltage
AC100-240V
Power adapter
DC12V 1A
Rotection class acc.
IP42
Permissible relative humidity
5-40Β°C, 80%RH
Dimensions (mm)
93*93*72
Package dimension (mm)
190*126*113
Product weight (kg)
0.55
Β
Product Description
SMV Vortex Mixers series are used in the fields of life science, and physical & chemical analysis for oscillation, mixing and stirring of sample tissues, cells, bacterial liquid, chemical reagents, etc. The vortex mixer has a variety of adapters suitable for 0.2mL~50mL centrifuge tubes, microplates, etc.
Product Features
Pressure sensor with precise touch activation; runs upon contact.
Zeroβdegree silicone feet for superior antiβvibration; no sliding or spinning, ensuring no interference with other equipment.
Brushless motor for longer service life and enhanced durability.
A variety of vibration module adapters are available
Digital display with adjustable speed for intuitive operation
Vortex Mixer includes a circular tray adapter (SME-H)

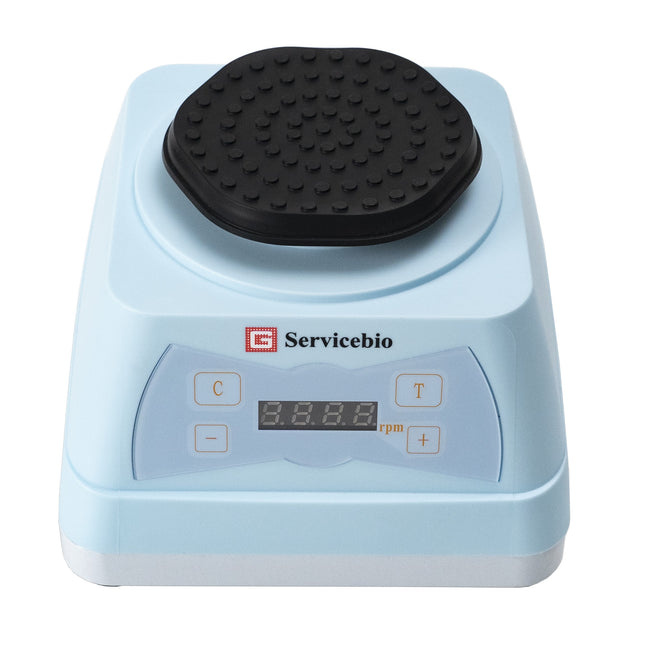

Specifications
Cat.No.
SMV-4500B
(touch-buttonΒ version)
RotatingΒ SpeedΒ Range
260-4500RPM
OperationΒ Method
ButtonΒ +Β Digital
OscillationΒ Mode
Circumference
CircumferentialΒ Diameter
3mm
OperationΒ Mode
TouchΒ /ContinuousΒ Operation
MotorΒ Type
BrushlessΒ DCΒ motor
InputΒ Power
36W
Voltage
AC100-240V/50-60Hz
Dimension
140Γ140Γ127mm
Weight
4.4kg
Features
LCD screen displays real-time speed and time for easy adjustment and monitoring.
Adjustable speed ranges from gentle to vigorous mixing to suit various needs.
Stable with pressure-mounted accessories to prevent slippage and splashing.
Brushless DC motor for high stability and maintenance-free operation.
Sturdy base ensures stability during operation for safety.
Includes various accessories for different sizes and types of tubes and plates.
Low noise for a quiet working environment.
Specifications
Motion type: Vortex motion
Orbital diameter: 4mm
Speed range: 100-3000rpm
Speed display: LCD
Run type: Touch, Continuous
Motor type:Β Brushless DC Motor
Motor rating input:Β 20W
Motor rating output:Β 12W
Power: 24W
Voltage: 100-240V
Frequency: 50/60Hz
Dimension[WΓHΓD]: 160*146*115mm
Weight: 3.4kg
Permissible ambient temperature: 5-4OΒ°C
Permissible relative humidity: 8O%RH
Protection class: IP21

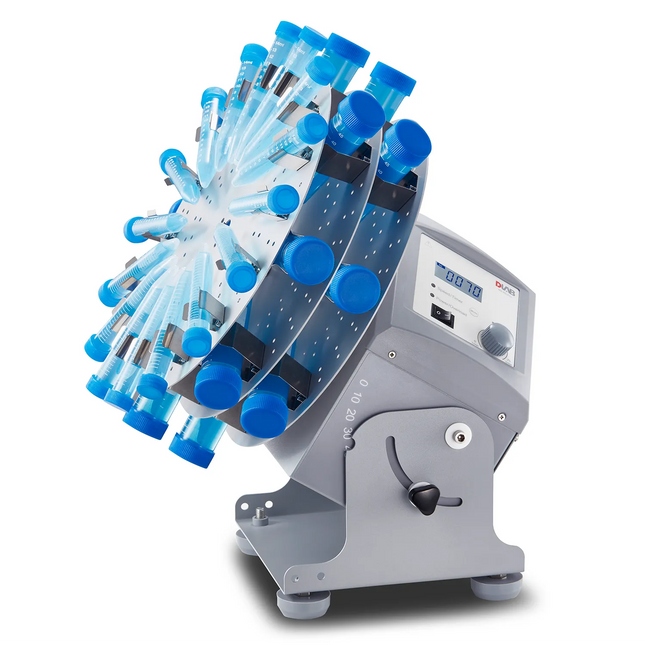

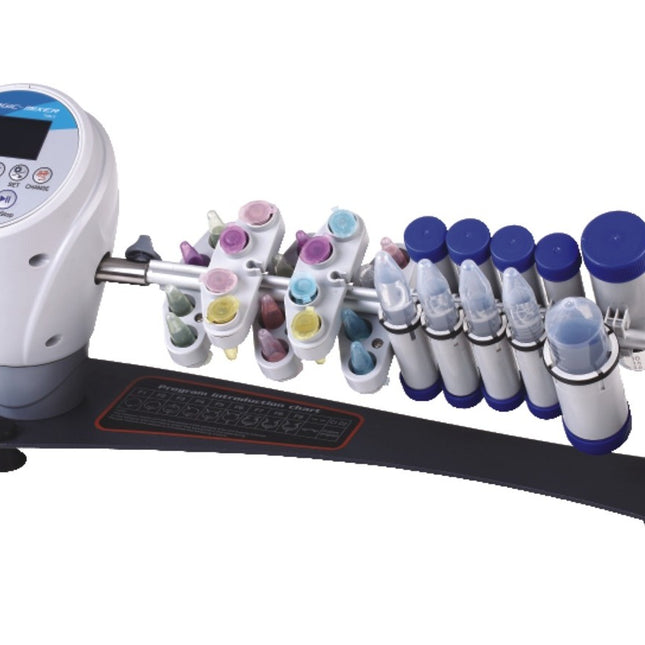

The Magic mixer holds many sizes of centrifuge tubes, from 0.2ml to 50ml. The mixer can be used in ambient temperatures from 4Β°C to 65Β°C.
Feature
360Β° rotation and 0-360Β° discretionary mixing angle setting available
10 different programs for rotation and mixing
Adjustable speed and time for effective mixing
360Β° vertical rotating - for larger particles (long wavelength mixing)
Swinging - for culture medium and larger partices (medium- long wavelength mixing)
Oscillating - for small particles (short wavelength mixing)
Model
FM-MAGIC MIXER
Adaptor
DC12V,1000MA
Rotation speed
1-99RPM
Environment temperature
4-65Β°C
Relative air humidity (at 20Β°C)
up to 60%

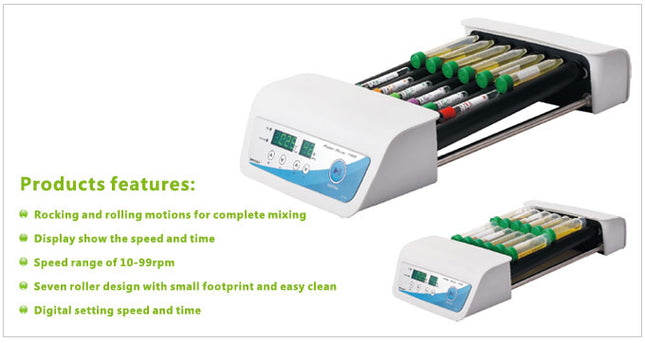

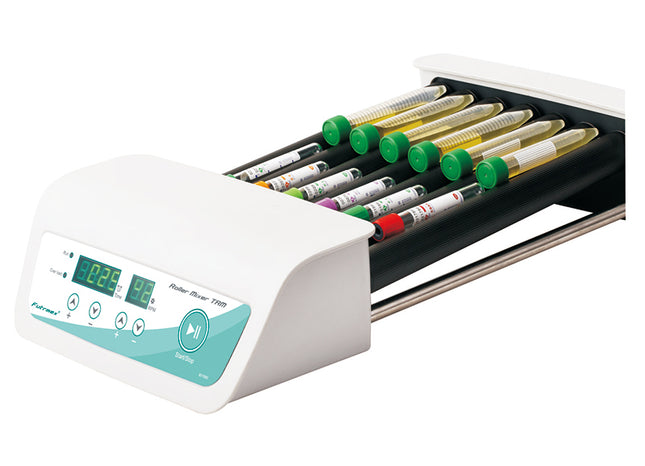

The digital Rollar Mixer provides a highly efficient rocking and rolling motions. Ideal for mixing blood samples, viscous substance and liquid-solid suspensions. Used in a variety applications, such as blood coagulation prevention and immune precipitation etc.
Feature
Rocking and rolling motions for complete mixing
Speed and time display
Speed range of 10-99rpm
Seven roller design with small footprint and easy clean
Digital setting speed and time
Technical Data
Speed (adjustable):
10-99 rpm
Motion:
Simultaneous roll & tilt
Electrical:
80-230V, 50-60Hz, 50W
Operating Temp:
4-40Β°C

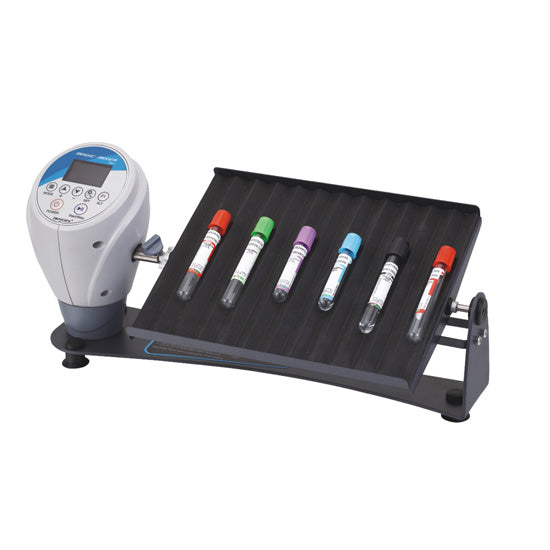

The platform shaker swings side by side. Speed and time are adjustable.Β
Features
Adjustable Rocking angle
Adjustable Spee
Time setting
Technical Data
Rocking Speed: 0-25 rpm
Rocking angle: Β±25Β°
Platform size: 250Γ200mm
External dimention: 420Γ200Γ200mm
Voltage: AC 80-230V (50/60Hz)
N.W.: 2.5Kg

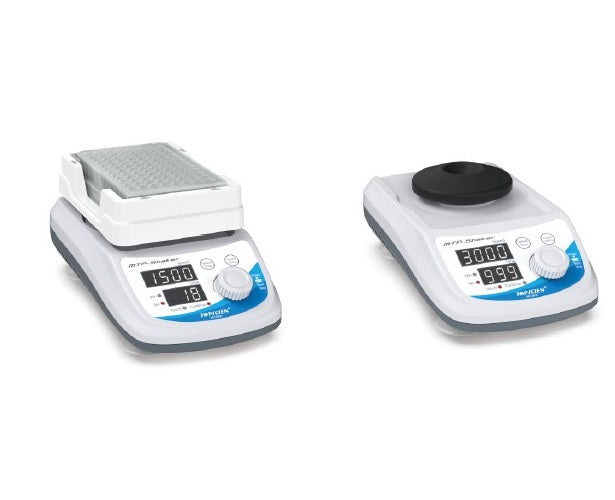

The Topscien MTP Digital Control Microplate mixer is suitablefor applications requiring reproducible results. The LED operation panel provides precise, clear display of speed and time. The timer displays the elapsed time which is adjustable. The unit automatically shuts down when the time reaches zero. Two modes of operation areavailable: "touch" mode where shaker is initiated by pressing the cuphead , and " Continue " mode where continuous operation is available.
"Continue" speed range
200-2500 rpm
"Touch" control speed range
200-3000 rpm
Time Setting
1 sec~999 mins
Circle diameter
3.5 mm

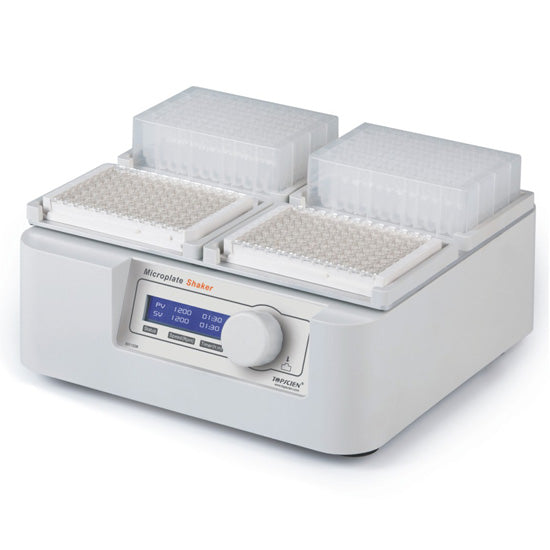

The TMS Microplate Shaker is a type of high speed shaker with brushless DC motor and microprocessor-controlled technique. It's good for ELISA plates (96/384 wells), tissue culture plates (24/48/96 wells) or deep well plates. The shaker is easy to operate and can load 4 microplates.
Feature
Easy to operate with one touch knob.
Variable speed between 200 to 1,500rpm
DC brushless motor for gentle and powerful motion
Orbital of 3mm for efficient mixing in small sample vessels
Continuous of timed operation
Speed Range
200-1500 RPM
Timing Range
1min-99h59min
Speed increment
10 RPM
Mixing orbit
3 mm
Capacity
4 microplates
Dimensions (DxWxH)
280 x 270 x 110mm
Net Weight
6.5kg

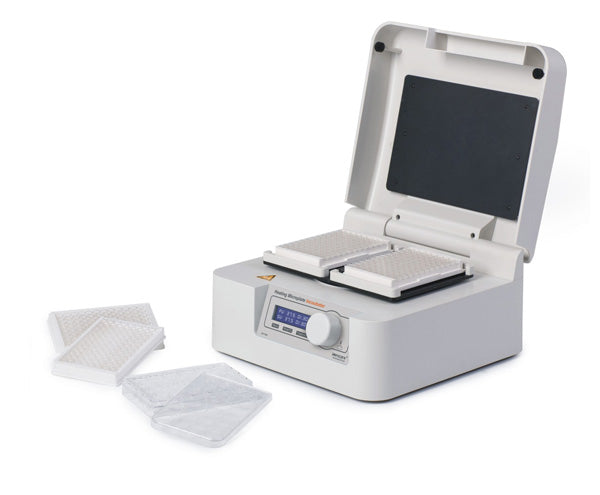

THM-INCU Microplate incubator is a microprocessor and PID controlled incubator with high performance. It accommodates up to two microplates. The incubator can be used for any enzyme or cell-based assays requiring uniform and strictly controlled temperature up to 70β. It's compatible with coated plates (96-, 384-well plates) or tissue culture plates.
Features
Heated lid prevents condensation
Accepts a variety of microplates
Easy to operate with one touch knob
Specifications
Temperature Control Range
RT+5β~70β
Timing Range
1min~99h59min
Temperature Control Accuracy
β€Β±0.5β
Display Accuracy
0.1β
Heating Speed
β€25min
Capacity
2 microplate
Power
150-200w
Dimensions( Lx W x H)mm
280 x 270 x 140mm
Weight
7kg

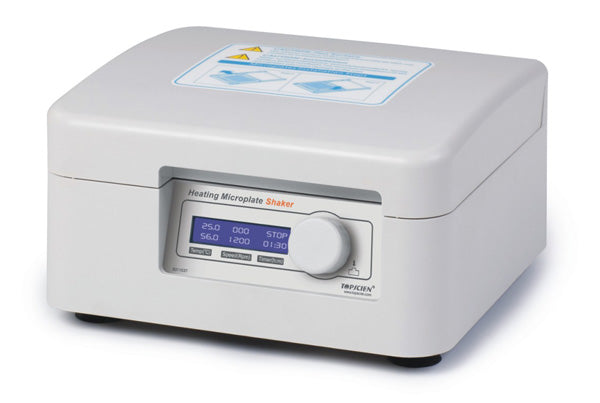

THMS HeatingΒ Microplates Shaker applies the technologies of brushless DC motor and PID intelligent temperature controI. It's mainly used for assays using ELISA plates (96-, 384-wells), and tissue culture plates.
Features:
3mm Mixing orbit
Heated lid prevents condensation
Accepts a variety of microplates
Easy to operate with one touch knob
Specifications
Incubation
8β~70β
Display Accuracy
0.1β steps
Temperature stability
Β±0.3β/ Temperature stability Β±0.3β
Warming Up Speed
<25min(form 20β to 70β)
Shaking
1.5mm orbit radius
Shaking range form 200 to 1600rpm(increment:1rpm)
Timed shaking
range:0 to 99hours 59min in 1min steps
Continuous shaking - no time limit
Capacity
2 microplates
Power Requirements
110v, 60/50Hz,max.150VA
Dimensions
280 x 270 x 140mm

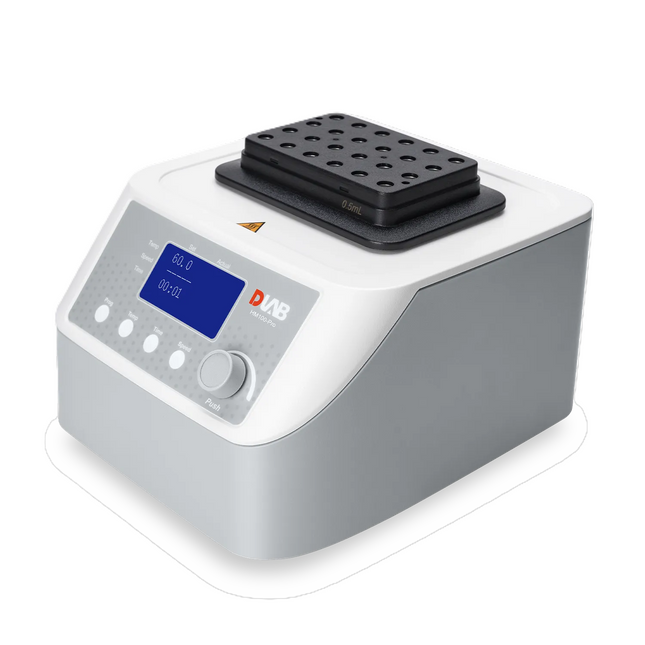

Features:
Fully programmable
Precise temperature control for heating
Real-time display of speed, temperature and time
Excellent mixing (200-1500rpm)
Quick interchange of blocks without tools and automatic block recognition
Compatible with most popular tubes
Block equipped with a lid for heat preservation
Temperature self-calibration
One heating block is included, please choose:

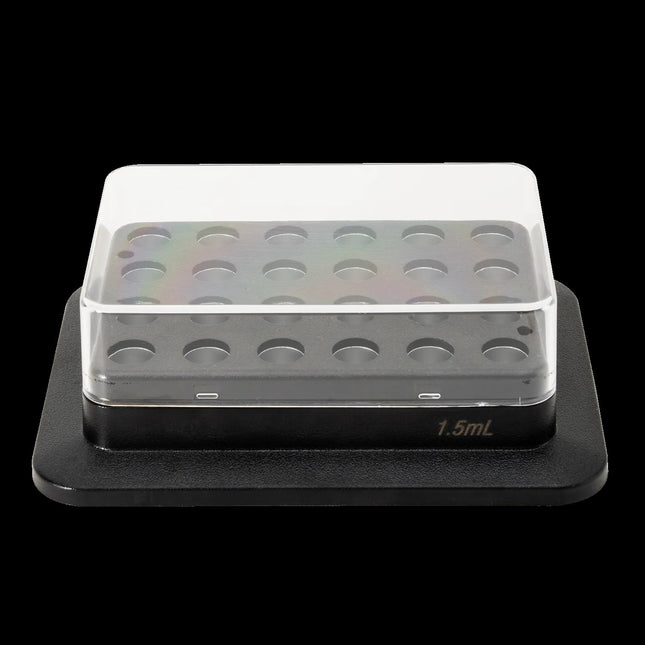

18900402: 1.5mL tube holder, 24 wells
18900403: 2ml tube holder, 24 wells
Product Video
Functions
Heating, mixing
Temperature range [β]
Below room temp 100
Temperature setting range[β]
Β±0.5
Temperature control accuracy@20-45 [β]
Β±0.5
Power [W]
200
Time setting range
0min~99h30min
Max Heating speed
5.5β/min
Mixing Speed [rpm]
200-1500
Mixing orbit [mm]
3
Display
TFT
Program
9
Overheating protection [β]
150
Voltage, Frequency
110/220V, 50/60Hz
Dimension [mm]
200 x 235 x 120
Weight [kg]
7.3
Operating temperature [β]
10-40
Operating humidity [%RH]
<80
