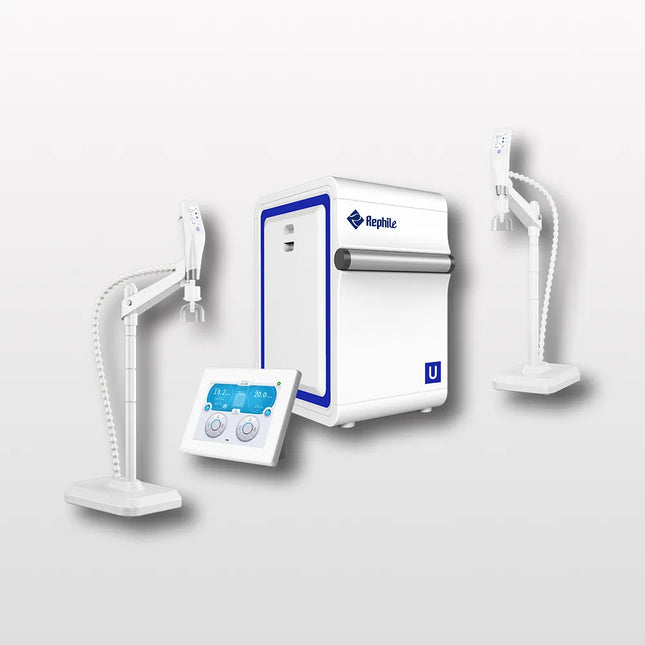

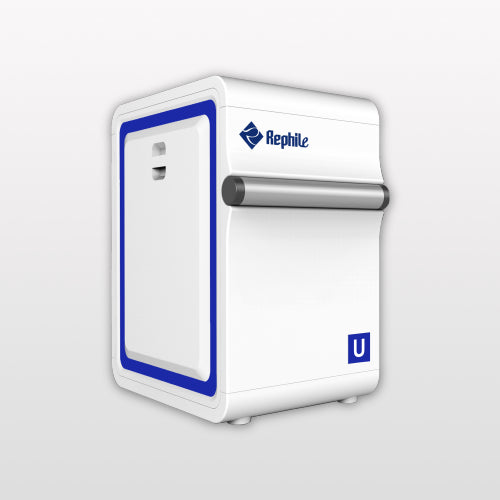

Genie U Set Feed: tap water Product: Type I and RO Water System includes Main system Control Console One Dispenser RO membrane(s) Four cartridges and a final filter 30L tank Leak protector More dispensers optional Feed Water Requirements Tap Water Municipal water, Conductivity < 2000 μS/cm (1000 ppm) Operating temperature 5 – 35 ℃ Feed water pressure 1 – 6 bar (15 – 90 psi) Water Flow Rate EDI water production rate (@ 25℃) 12 L/hr EDI water dispensing rate Up to 2.0 L/min Ultrapure water dispensing rate Up to 2.0 L/min Product Water Quality RO water conductivity (@ 25℃) typically < 20 μS/cm (feed water conductivity < 500 μS/cm) RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Ultrapure water resistivity (@ 25℃) 18.2 MΩ·cm Ultrapure water TOC* < 2 ppb Particles in ultrapure water ( > 0.2 μm) No particles (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water <10 pg/ml (with a RephiBio filter) Product Water Quality Stored in Tank ( for tank recirculation models ) Resistivity (＠25℃) > 1 MΩ·cm (default), adjustable Dimensions Main system dimensions Width × depth × height 32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight 20 kg Input Voltage 110 – 240 VAC Operating Voltage < 200 W *In the appropriate operating conditions, otherwise typically ≤5 ppb.

Read more less

Genie U Set Feed: tap water Product: Type I and RO Water System includes Main system Control Console One Dispenser RO membrane(s) Four cartridges and a final filter 30L tank Leak protector More dispensers optional Feed Water Requirements Tap Water Municipal water, Conductivity < 2000 μS/cm (1000 ppm) Operating temperature 5 – 35 ℃ Feed water pressure 1 – 6 bar (15 – 90 psi) TOC < 2000 ppb Water Flow Rate EDI water production rate (@ 25℃) 12 L/hr EDI water dispensing rate Up to 2.0 L/min Ultrapure water dispensing rate Up to 2.0 L/min Product Water Quality RO water conductivity (@ 25℃) typically < 20 μS/cm (feed water conductivity < 500 μS/cm) RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Ultrapure water resistivity (@ 25℃) 18.2 MΩ·cm Ultrapure water TOC* < 2 ppb Particles in ultrapure water ( > 0.2 μm) No particles (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water <10 pg/ml (with a RephiBio filter) Product Water Quality Stored in Tank ( for tank recirculation models ) Resistivity (＠25℃) > 1 MΩ·cm (default), adjustable Dimensions Main system dimensions Width × depth × height 32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight 20 kg Input Voltage 110 – 240 VAC Operating Voltage < 200 W *In the appropriate operating conditions, otherwise typically ≤5 ppb.

Read more less

Genie U Set Feed: tap water Product: Type I and RO Water System includes  Main system  Control Console  One Dispenser  RO membrane(s)  Four cartridges and a final filter  30L tank  Leak protector More dispensers optional Feed Water Requirements Tap Water Municipal water, Conductivity < 2000 μS/cm (1000 ppm) Operating temperature 5 – 35 ℃ Feed water pressure 1 – 6 bar (15 – 90 psi) Water Flow Rate EDI water production rate (@ 25℃) 24 L/hr EDI water dispensing rate Up to 2.0 L/min Ultrapure water dispensing rate Up to 2.0 L/min Product Water Quality RO water conductivity (@ 25℃) typically < 20 μS/cm (feed water conductivity < 500 μS/cm) RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Ultrapure water resistivity (@ 25℃) 18.2 MΩ·cm Ultrapure water TOC* < 2 ppb Particles in ultrapure water ( > 0.2 μm) No particles (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water <10 pg/ml (with a RephiBio filter) Product Water Quality Stored in Tank ( for tank recirculation models ) Resistivity (＠25℃) > 1 MΩ·cm (default), adjustable Dimensions Main system dimensions Width × depth × height 32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight 20 kg Input Voltage 110 – 240 VAC Operating Voltage < 200 W *In the appropriate operating conditions, otherwise typically ≤5 ppb.

Read more less

Genie U Set Feed: tap water Product: Type I and RO Water System includes  Main system  Control Console  One Dispenser  RO membrane(s)  Four cartridges and a final filter  30L tank  Leak protector More dispensers optional Feed Water Requirements Tap Water Municipal water, Conductivity < 2000 μS/cm (1000 ppm) Operating temperature 5 – 35 ℃ Feed water pressure 1 – 6 bar (15 – 90 psi) TOC < 2000 ppb Water Flow Rate EDI water production rate (@ 25℃) 24 L/hr EDI water dispensing rate Up to 2.0 L/min Ultrapure water dispensing rate Up to 2.0 L/min Product Water Quality RO water conductivity (@ 25℃) typically < 20 μS/cm (feed water conductivity < 500 μS/cm) RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Ultrapure water resistivity (@ 25℃) 18.2 MΩ·cm Ultrapure water TOC* < 2 ppb Particles in ultrapure water ( > 0.2 μm) No particles (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water <10 pg/ml (with a RephiBio filter) Product Water Quality Stored in Tank ( for tank recirculation models ) Resistivity (＠25℃) > 1 MΩ·cm (default), adjustable Dimensions Main system dimensions Width × depth × height 32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight 20 kg Input Voltage 110 – 240 VAC Operating Voltage < 200 W *In the appropriate operating conditions, otherwise typically ≤5 ppb.

Read more less

Genie U Set Feed: tap water Product: Type I and RO Water System includes  Main system  Control Console  One Dispenser  RO membrane(s)  Four cartridges and a final filter  30L tank  Leak protector More dispensers optional Feed Water Requirements Tap Water Municipal water, Conductivity < 2000 μS/cm (1000 ppm) Operating temperature 5 – 35 ℃ Feed water pressure 1 – 6 bar (15 – 90 psi) Water Flow Rate EDI water production rate (@ 25℃) 32 L/hr EDI water dispensing rate Up to 2.0 L/min Ultrapure water dispensing rate Up to 2.0 L/min Product Water Quality RO water conductivity (@ 25℃) typically < 20 μS/cm (feed water conductivity < 500 μS/cm) RO rejection 97 to 98% ionic rejection (new RO cartridge)> 99% organic rejection> 99% particulates & bacteria rejection Ultrapure water resistivity (@ 25℃) 18.2 MΩ·cm Ultrapure water TOC* < 2 ppb Particles in ultrapure water ( > 0.2 μm) No particles (with a 0.2 μm final filter or RephiBio filter) Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water <10 pg/ml (with a RephiBio filter) Product Water Quality Stored in Tank ( for tank recirculation models ) Resistivity (＠25℃) > 1 MΩ·cm (default), adjustable Dimensions Main system dimensions Width × depth × height 32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight 20 kg Input Voltage 110 – 240 VAC Operating Voltage < 200 W *In the appropriate operating conditions, otherwise typically ≤5 ppb.

Read more less

Genie PURIST Set Feed: purified water Product: Type I Water System includes  Main system  Control Console  One Dispenser  UV preinstalled  Two cartridges and a final filter   Feed Water Requirements Pure water EDI water, RO water, Distilled water, Deionized water Operating temperature 5 – 35 ℃ Feed water pressure 0 – 1 bar (0 – 15 psi) TOC < 2000 ppb Product Water Quality Ultrapure water dispensing rate Up to 2.0 L/min Ultrapure water resistivity (@ 25℃) 18.2 MΩ·cm Ultrapure water TOC* < 2 ppb Particles in ultrapure water ( > 0.2 μm) No particles (with a 0.2 μm final filter or RephiBio filter Microorganisms in ultrapure water < 0.001 cfu/ml (with a 0.2 μm final filter or RephiBio filter) Pyrogens (endotoxins) in ultrapure water < 0.001 Eu/ml (with a RephiBio filter) RNase in ultrapure water < 0.5 pg/ml (with a RephiBio filter) DNase in ultrapure water <10 pg/ml (with a RephiBio filter) Dimensions   Main system dimensionsWidth × depth × height   32 × 44 × 54 cm (12.6 × 17.3 × 21.3 in) Dispenser dimensions Width × depth × height 21 × 29 × 61 cm (8.3 × 11.4 × 24.0 in) Weight 17 kg Input Voltage 110 – 240 VAC Operating Voltage 24 VDC Main system power < 200 W *In the appropriate operating conditions, otherwise typically ≤5 ppb.

Read more less

Suitable for the following Rephile System: Genie U Genie E Genie R for tank recirculation

Read more less

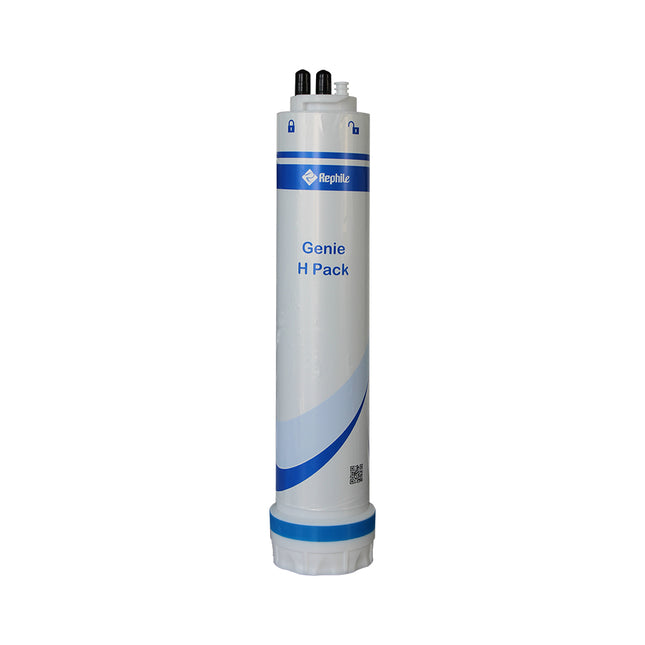

Genie H Pack is high-purification pack for Genie water system to remove ionic impurities from water. Purification Technologies:  Ion-exchange resins for removing ionic contaminants Suitable for Genie water systems: Genie U Genie PURIST

Read more less

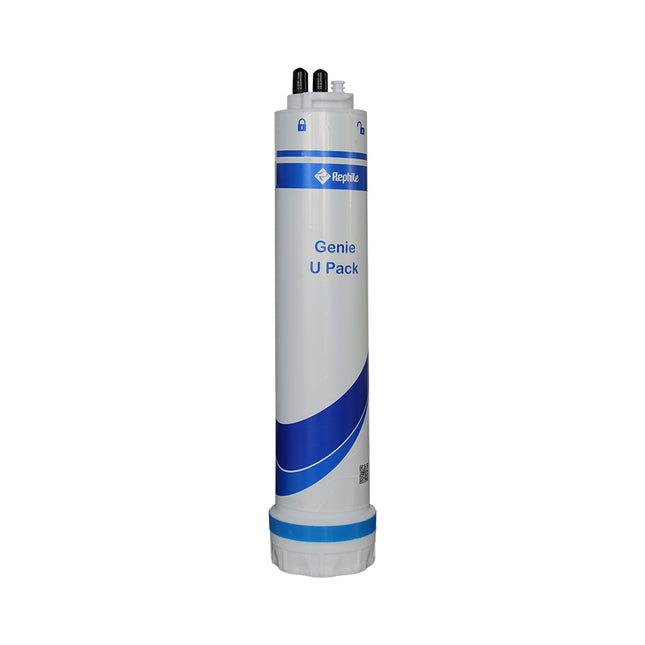

Genie U Pack is designed for removing ionic and organic contaminants below trace level to match the water quality required for your application. Purification Technologies:  Ion-exchange resins for removing trace level ionic contaminants Activated carbon for trace level of organic contaminants Technical Specifications Burst pressure ≥20bar Flow rate  ≥2L/min（Feed pressure ≥ 2 bar） Height 393.8mm Diameter φ90mm Dynamic capacity ≥30 gNaCl   Suitable for Genie water systems: Genie G Genie U Genie A Genie PURIST
